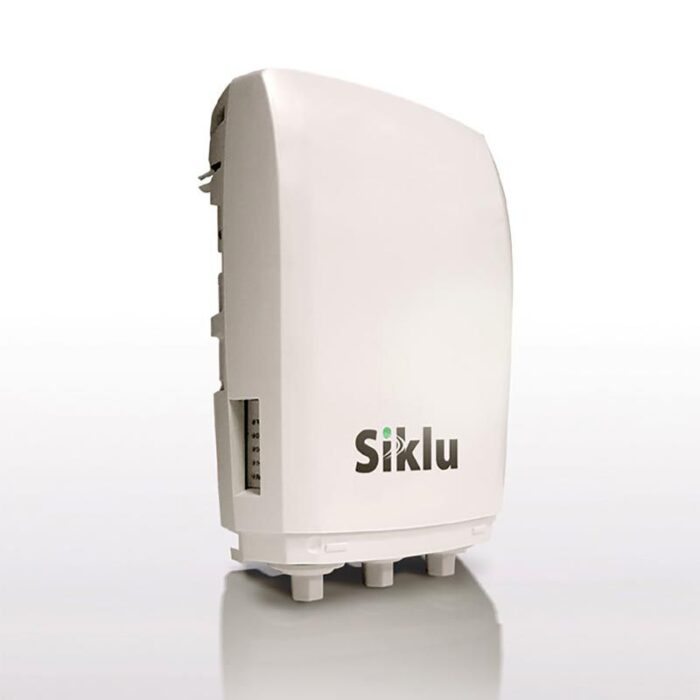

Siklu MH-B100-CCS-PoE-MWB MultiHaul ™ BU, 90°, 500Mbps upgradable to 1800Mbps, 2 RJ-45 & 1 SFP (1 port PSE enabled), MK & PoE injector included, IP-65, White
Siklu
Siklu brought to the market affordable gigabit capacity for a variety of applications. Our technology brings scalability, multi-gigabit capacity and reliability to the world of wireless networks, and we are dedicated to delivering great value through fast-and-easy-to-deploy solutions that deliver flawless, predictable performance.
Siklu MH-B100-CCS-PoE-MWB MultiHaul™ BU, 90°, 500Mbps upgradable to 1800Mbps
MultiHaul™ BU, 90°, 500Mbps upgradable to 1800Mbps, 2 RJ-45 & 1 SFP (1 port PSE enabled), MK & PoE injector included, IP-65, White. 60GHz Point-to-Multipoint radio
- Ultra-high multi-gigabit throughput
- Plug & play with automatic alignment
- Perfect for 5G fixed wireless and security networks
Millimetre waves + PtMP, a winning combo
The MultiHaul™ brings the advantages of millimetre waves – multi-gigabit throughput and high reliability – to a cost effective point-to-multipoint form factor. Seamlessly and quickly extend your fiber network and start delivering 5G-ready fixed-wireless today.
Product Features:
• Security / Safe City Networks
• Gigabit to the Home
• Smart City
• Business Services
• Wi-Fi Backhaul
Product Specifications:
• Topologies: Point to Multi-Point / Point to Point
• Built-In Antenna: Horizontal Scanning: 90° / Vertical Beam-width: 20°
• Frequency and Duplexing: 57-64GHz
• Channels and Width: 2 non-overlapping channels, 2160MHz wide
• Modulation and Coding: 9 levels of adaptive coding and modulation
• Line Rate (PHY) Line rate up to 2300Mbps
• Aggregate Throughput: Max capacity 1800Mbps, license dependant
• System Gain (Link Budget): 125dB (including antenna gain)
• Typical Reach: 800 – 1000ft (250 – 300m)
• Interfaces: 2 x RJ45 100/1000Base-T + 1 x SFP (supports 1GbE & 2.5GbE)
• Terminal Units (TU): Up to 8 Terminal Units
• Ethernet Features:
IEEE 802.1d transparent bridging
VLAN & VLAN stacking
Jumbo frames
• Security: AES 128-bits
• Management and Provisioning:
Zero-touch turn up; In-band, out-of-band management
Web GUI: (one-click configuration of local and remote units) and embedded CLI
SNMPv2/3, TACACS+, RADIUS
• Conformance:
Radio: FCC Part 15.255
EMC: FCC 47CFR.part 15
Safety: UL 60950
• Power Supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at+)
• PoE Out:
ETH2: 26W, 802.3af
ETH3: 13W, 802.3af
• Environmental:
Operating Temperature: -22 to 131°F (-30 to 56°C)
Optional: -49 to 131°F (-45 to 56°C)
Ingress Protection Rating: IP65 (optional IP67)
• Dimensions: 7.5 x 5.2 x 3.5″ (190.5 x 132.08 x 88.9mm)
• Weight: 3lbs (including mounting kit)
