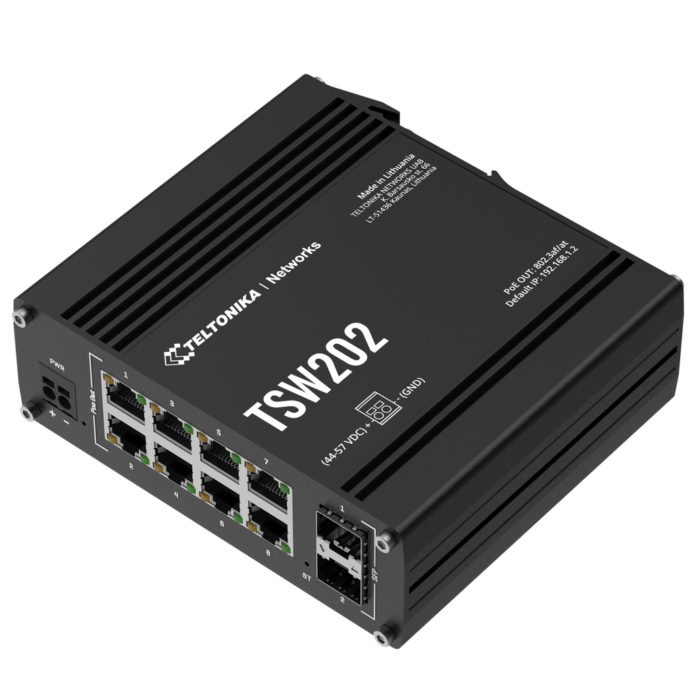

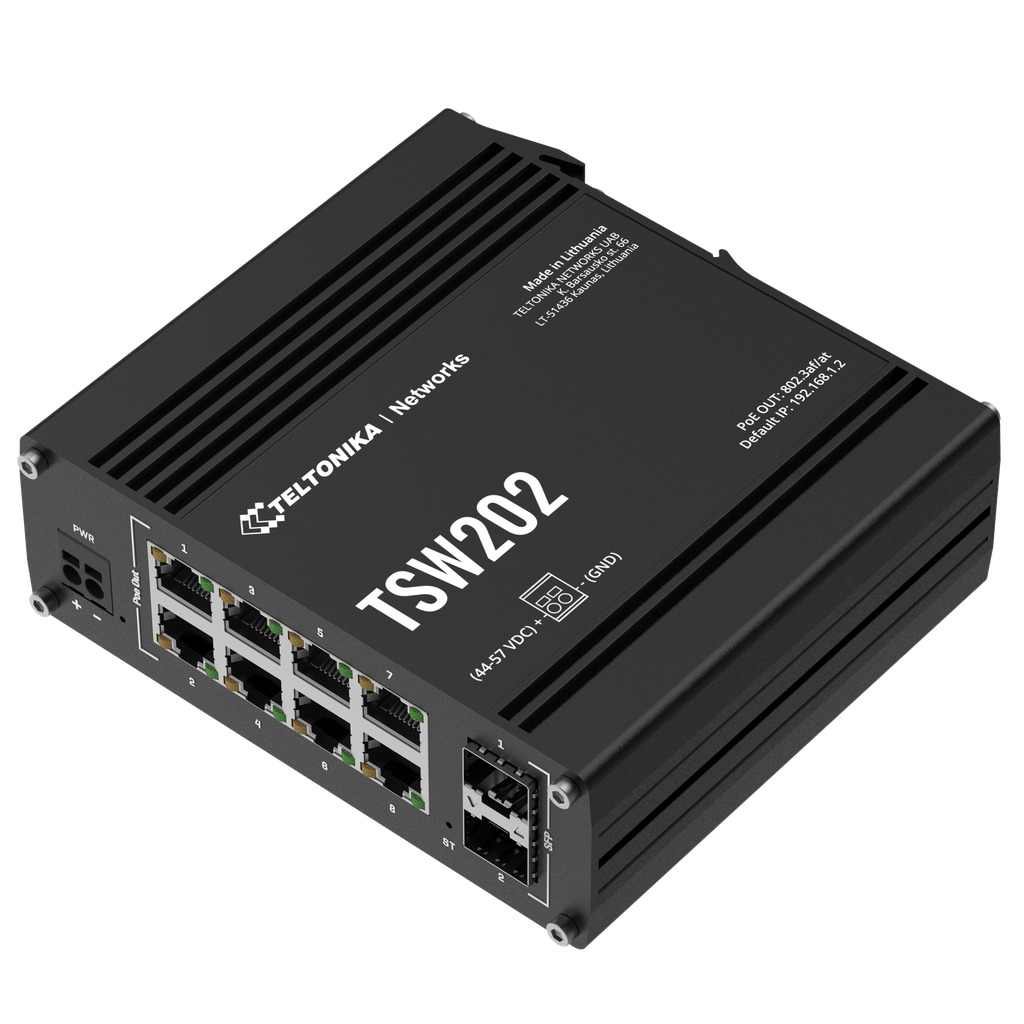

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features PSU not included
Teltonika
Teltonika is a global provider of IoT equipment. During Teltonika’s 21 years of R&D, product development and manufacturing of IoT & M2M industrial networking devices, they have created a comprehensive product portfolio for the most challenging Industry 4.0 connectivity applications. Teltonika controls all the stages of their product development life cycle, allowing it to be fast and flexible in reacting to market demands and changes, while offering devices which are secure, reliable, easy to use and market disruptive.
Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features (Power Supply Not Included)
-
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
-
Fibre
2 x SFP ports
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
-
PoE ports
Port 1 – 8
-
PoE standards
802.3af and 802.3at Alternative B
-
PoE Max Power per Port (at PSE)
30 W
-
Total PoE Power Budget (at PSE)
240 W
-
Maximum Ethernet cable length
100 m
-
EtherNet/IP
Yes
-
PROFINET (class B)
Yes
-
SNMP V2, V3
Yes
-
LLDP
Yes
-
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
-
MRP
MRP client role, MRP manager role
-
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
-
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
-
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
-
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
-
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
-
QOS
Port priority, DSCP priority, 802.1p priority, TOS
-
Scheduling method
SP/WFQ/WRR
-
Bandwidth control
Rate limiting, storm control
-
Traffic Shaper
Port-based shaping
-
Tools
Cable diagnostic, ping, traceroute, nslookup
-
Ping reboot
Capability to restart PoE in a specific port
-
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:Â https://developers.teltonika-networks.com
-
RAM
128MB, DDR3
-
FLASH storage
16 MB serial flash
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Operating system
WitchOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++
-
Development tools
SDK package with build environment provided
-
Bandwidth (Non-blocking)
20 Gbps
-
Forwarding rate
14.88 Mpps
-
Packet buffer
512 KB
-
MAC address table size
8K entries
-
Jumbo frame support
10000 bytes
-
Connector
2-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC
-
PoE-out input voltage range
44 – 57 VDC
-
Power consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W
-
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
-
Fibre
2 x SFP ports
-
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Reset
Software reset button
-
Other
1 x Grounding screw
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
132 x 44.2Â x 122.2 mm
-
Weight
610 g
-
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
-
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN 61000-4-11:2020
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
