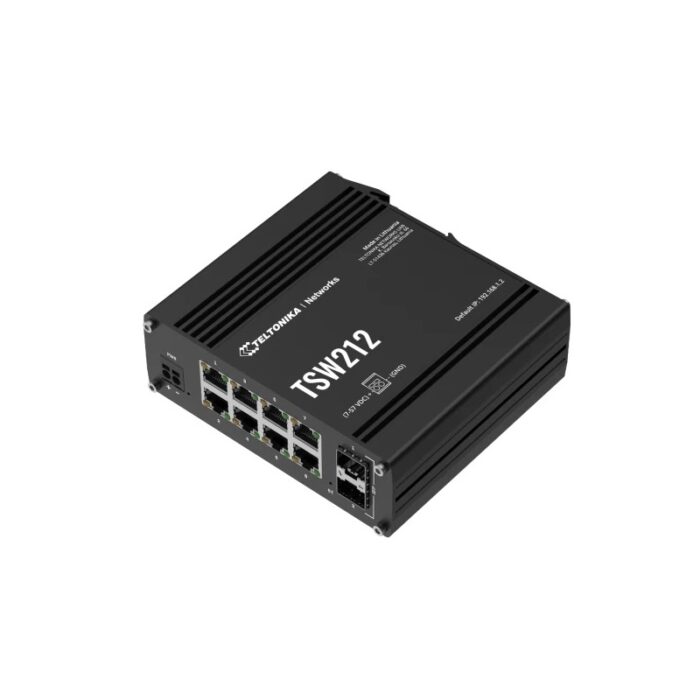

Teltonika TSW212 Teltonika TSW212 DIN Rail Mountable Managed Switch with 8 x 1Gbps ETH-ports and 2 x SFP
Teltonika
Teltonika is a global provider of IoT equipment. During Teltonika’s 21 years of R&D, product development and manufacturing of IoT & M2M industrial networking devices, they have created a comprehensive product portfolio for the most challenging Industry 4.0 connectivity applications. Teltonika controls all the stages of their product development life cycle, allowing it to be fast and flexible in reacting to market demands and changes, while offering devices which are secure, reliable, easy to use and market disruptive.
Teltonika TSW212 Teltonika TSW212 DIN Rail Mountable Managed Switch with 8 x 1Gbps ETH-ports and 2 x SFP
-
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
-
Fibre
2 x SFP ports
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
-
EtherNet/IP
Yes
-
PROFINET (class B)
Yes
-
SNMP V2, V3
Yes
-
LLDP
Yes
-
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
-
MRP
MRP client role, MRP manager role
-
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
-
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
-
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
-
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
-
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
-
QOS
Port priority, DSCP priority, 802.1p priority, TOS
-
Scheduling method
SP/WFQ/WRR
-
Bandwidth control
Rate limiting, storm control
-
Traffic Shaper
Port-based shaping
-
Tools
Cable diagnostic, ping, traceroute, nslookup
-
RAM
128MB, DDR3
-
FLASH storage
16 MB serial flash
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Operating system
TSWOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++
-
Development tools
SDK package with build environment provided
-
Bandwidth (Non-blocking)
20 Gbps
-
Forwarding rate
14.88 Mpps
-
Packet buffer
512 KB
-
MAC address table size
8K entries
-
Jumbo frame support
10000 bytes
-
Connector
2-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC
-
Power consumption
Idle: < 2.5 W / Max: 6 W
-
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
-
Fibre
2 x SFP ports
-
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Reset
Software reset button
-
Other
1 x Grounding screw
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
132 x 44.2Â x 122.2 mm
-
Weight
615 g
-
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
-
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL)
