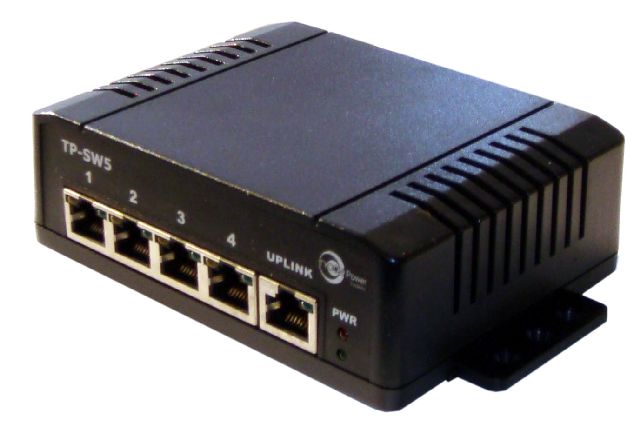

Tycon Power TP-SSW5-NC – 12-56V 5 port High Power (2A/port) POE 10/100BASET switch

Tycon Power TP-SSW5-NC – 12-56V 5 port High Power (2A/port) POE 10/100BASET switch

Universal Voltage 10/100 POE Switch. The switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. This model is very compact at only 4 x 5 x 1.5″. 2A per port.

Product Features:

• High Power 10/100 POE Switch

• Remotely Power Equipment through CAT5 Cable up to 100m

• Up to 2A per Port

• Built-in Surge Protection

• Automatic MDI/MDI-X Crossover

• Automatic Speed and Duplex Sensing

• 1K Self Learning MAC Address Table

• Compact Size

• High Temperature Operation

• CE and FCC Certification

Product Applications:

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems

• Power multiple devices from 1 data cable

Product Specifications:

• Ethernet Standard: IEEE802.3 / IEEE802.3u

• Ports: 1 data/POE input and 4 data/POE, automatic crossover and polarity

• Transmission Speed: 100 Mbps / 10 Mbps Auto-negotation

• Switch Technology: Store and Forward

• Protocol: CSMA/CD

• Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex)

• Data Transmission Rate: 148800pps, 14880pps

• Address Table: 1K MAC, self-learning

• Connections: Shielded RJ45

• POE Output Ports: Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)

• Maximum POE Power: 2A per port

• POE Auto Detection: Passive POE

• POE Protection: Over Temperature, Over Current, Over/Under Voltage

• DC Power Input: 12V to 57VDC, Dual DC Inputs, Reverse Polarity Protected

• Self Consumption: <1W

• Operating Temperature: -40 to +85°C (-40 to 185°F)

• Operating Humidity (RH): 5% – 90% (non-condensing)

• Storage Temperature: -55 to +105°C (-67 to +221°F)

• Dimensions: 90 x 118 x 40mm (3.5 x 5.6 x 1.6″)

• Weight: 182g (6.7oz)
