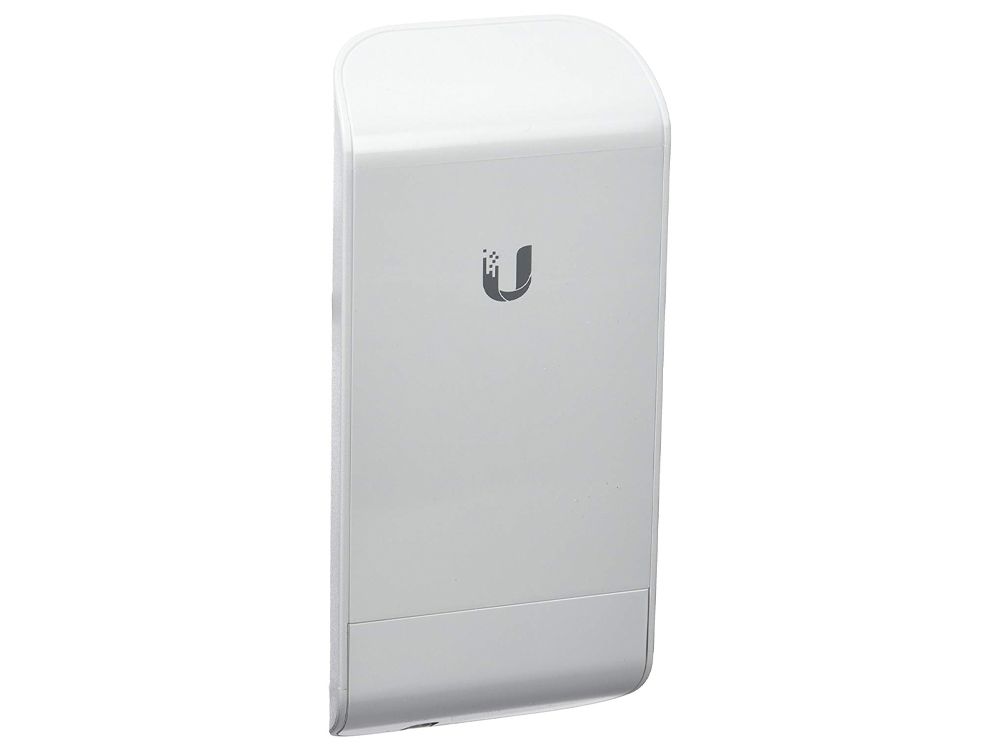

Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX

Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX

Product Code: LocoM2

Barcode: 817882023245

The original Ubiquiti NanoStation LOCOM2 set the bar for the world’s first low-cost and efficiently designed outdoor broadband CPE. The Ubiquiti NanoStation M and Ubiquiti NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Ubiquiti 150+ Mpbs real outdoor throughput and up to 5km range. Featuring 2×2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.

The LOCOM2 antenna array designs featuring 8dBi at 2.4GHz. Both with optimised cross-polarity isolation and in a compact form-factor. Remote hardware reset circuitry of Ubiquiti NanoStation M allows for device to be reset remotely from power supply location.

Key Features:

• Connect two remote locations on the one network

• Share Internet connection between buildings, remote sites, etc.

• Up to 200mW output power, 2×2 MIMO operation, 100Mbps

• Integrated AirOS web software for controlling power, bridge/AP mode, etc.

• Includes POE injector and 240V AC adaptor

• Two units required for wireless bridge.
• Dimensions: 161 mm x 31 mm x 80 mm
• Weight: 180g (6.35 oz)
• Power Supply: (PoE) 24V, 0.5A24V, 0.5A

• Max. Power Consumption: 5.5W5.5W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Frequency: 2412-2462 MHz

• Gain8.5 dBi

• Networking Interface: (1) 10/100 Ethernet Port

• Processor SpecsAtheros: MIPS 24Kc, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Frequency: 2.4 GHz

• Cross-pol Isolation: 20 dB Minimum

• Max. VSWR1.4:1

• Beam-width: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)

• Polarisation: Dual Linear

• Enclosure: Outdoor UV Stabilised Plastic

• Mounting: Pole-Mount (Kit Included)

• Operating Temperature: -30 to 75° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC Part 15.247, IC RS210, CE

• RoHS Compliance: Yes
